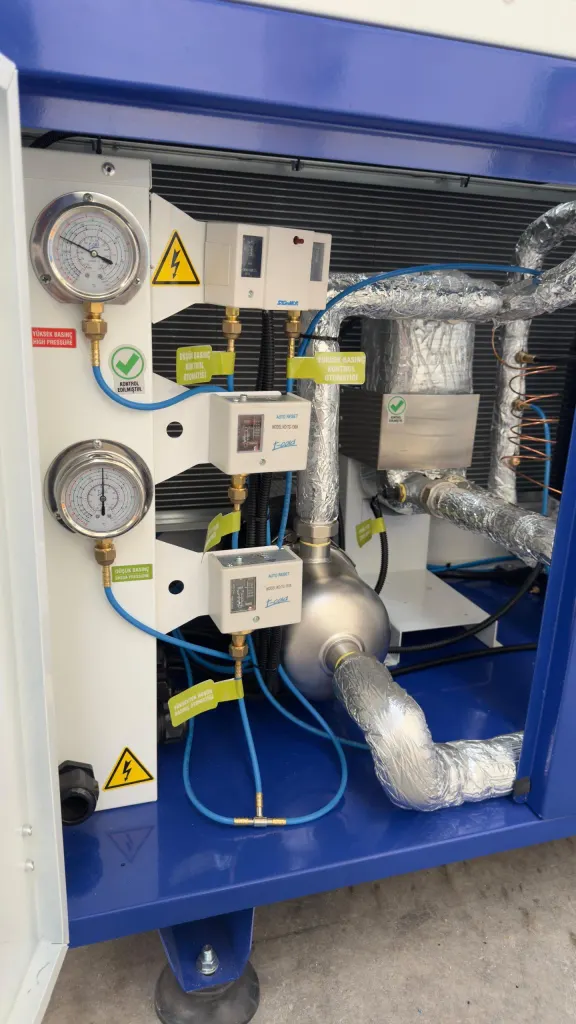

Mini chiller
Compact series
- Configuration
- Scroll compressor, stainless steel circulation pump
- Use
- CNC machines, single injection moulding machines, hydraulic systems, laboratory equipment
Air-cooled industrial chiller systems
10,000–55,000 kcal/h11.6–64 kW
Air-cooled units from mini chillers to high-capacity industrial chillers. Each unit is selected for your process heat load and operating regime, and is load-tested at the factory before shipment.
- Compressor
- Scroll; semi-hermetic in the upper range
- Heat exchanger
- Stainless steel plate
- Pump
- Stainless steel
- Water temperature
- Adjustable 5–40 °C
- Condenser
- Air-cooled, no cooling tower required
Industrial chiller models
Our standard production ranges. Intermediate capacities and custom dimensions are built to project. Switch to “Inside view” to see each model's internal layout.

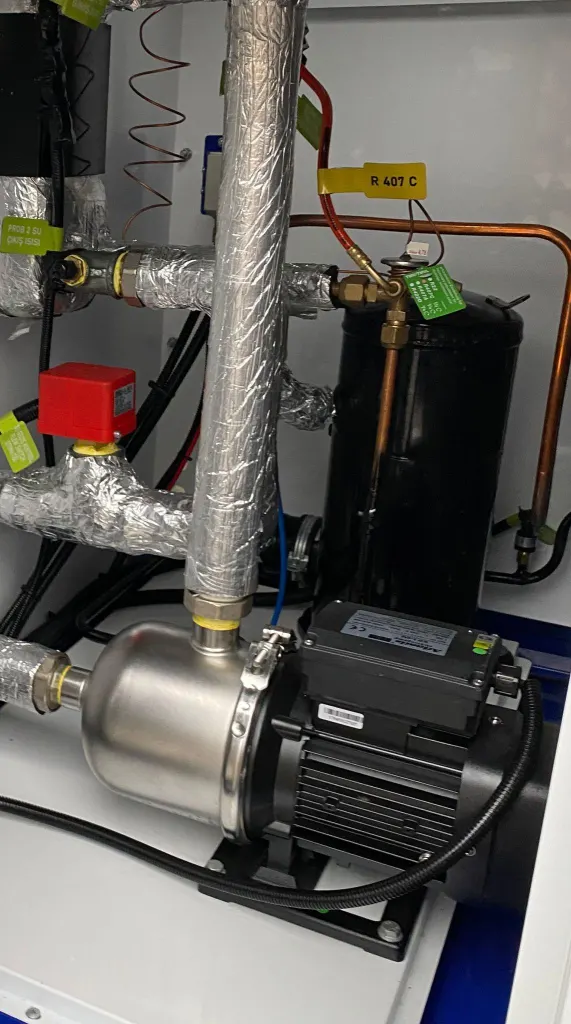

Compact industrial chiller
10,000–15,000 kcal/h11.6–17.4 kW
- Configuration
- Scroll compressor
- Use
- Small CNC and lathes, injection auxiliaries, laser marking, hydraulic oil cooling
Industrial chiller
25,000 / 30,000 kcal/h29–35 kW
- Configuration
- Scroll compressor
- Use
- CNC machining, plastic injection, laser cutting and welding, presses, food and packaging lines

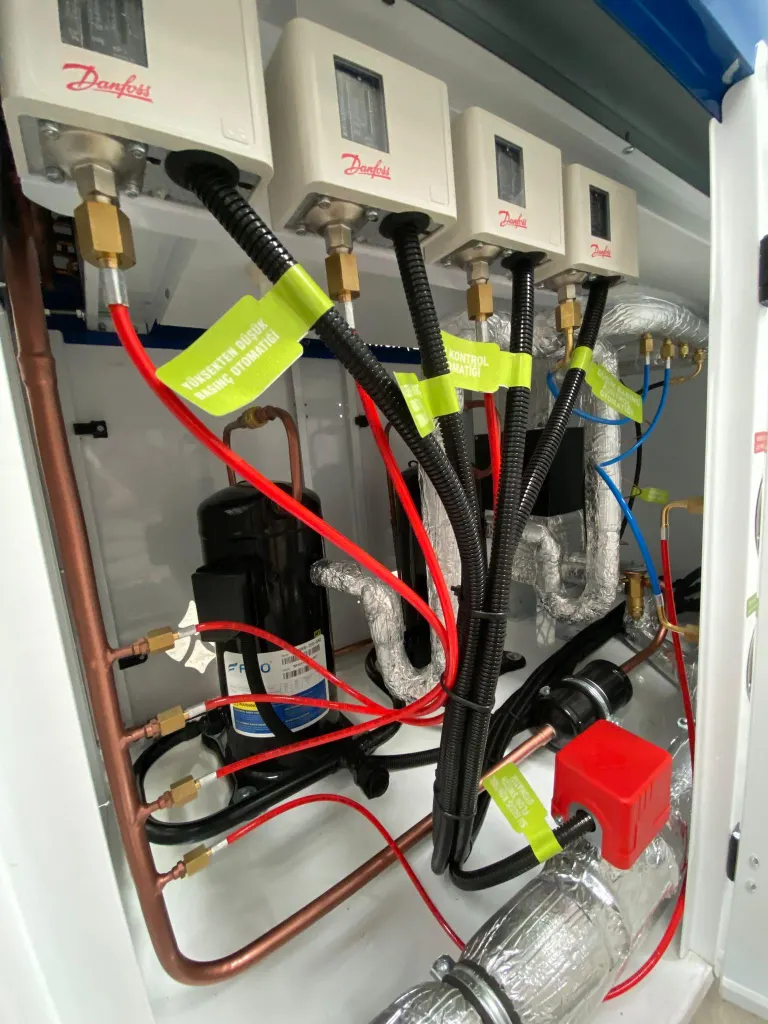

Heavy-duty industrial chiller
35,000 / 40,000 kcal/h41–47 kW
- Configuration
- Scroll compressor
- Use
- Process cooling for production lines with high heat loads
High-capacity chiller
50,000 / 55,000 kcal/h58–64 kW
- Configuration
- Scroll and semi-hermetic compressors
- Use
- CNC lines, injection and extrusion, aluminium processing, laser and plasma, hydraulic power units
Applications
- Plastic injection moulding
- Extrusion
- CNC machining
- Laser cutting and welding
- Hydraulic presses
- Food and beverage
- Packaging
- Laboratories
Frequently asked questions
What is the difference between an air-cooled and a water-cooled chiller?
An air-cooled chiller rejects heat directly to the atmosphere with fans; it needs no cooling tower, tower pump or water treatment and consumes no water. Water-cooled designs are preferred at very high capacities and in hot climates, with a dry cooler or cooling tower circuit on the heat-rejection side.
How should I select the capacity?
Capacity is calculated from the chilled water flow and the inlet–outlet temperature difference: Q (kW) = flow (m³/h) × 1.163 × ΔT. Because an air-cooled chiller loses capacity as summer ambient temperature rises, a safety margin is added to the calculated value.
What determines the price of a chiller?
Capacity, compressor type, heat exchanger and pump materials, tank volume, level of control and automation, and operating conditions. Send us your process data and we will prepare a firm quotation.
